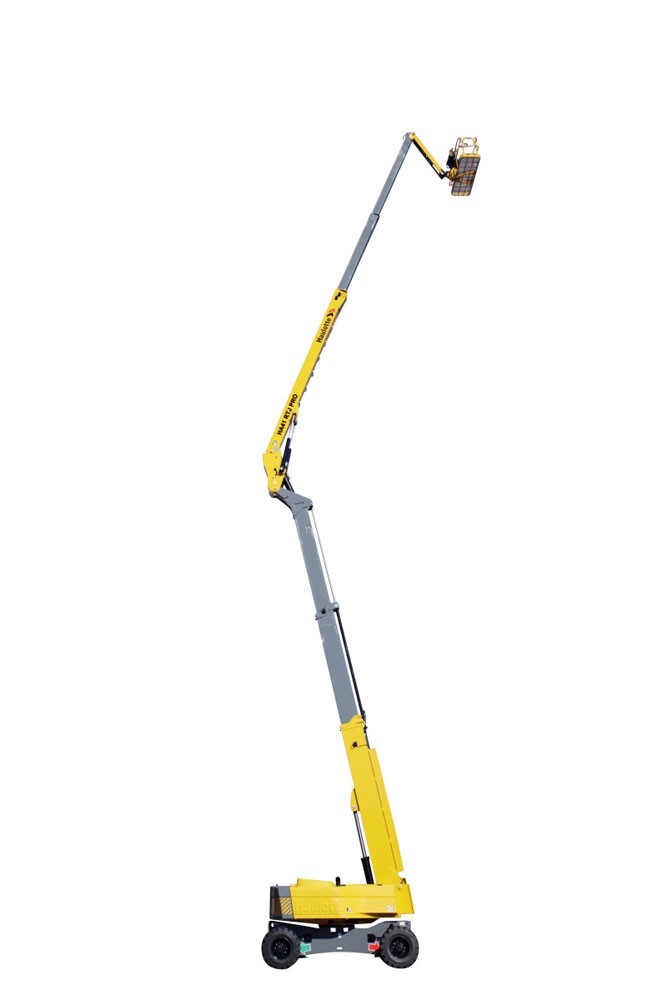

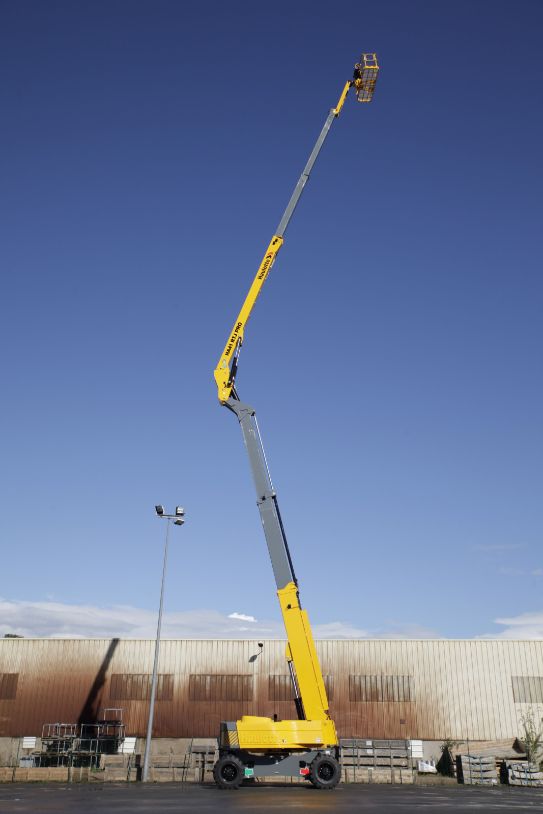

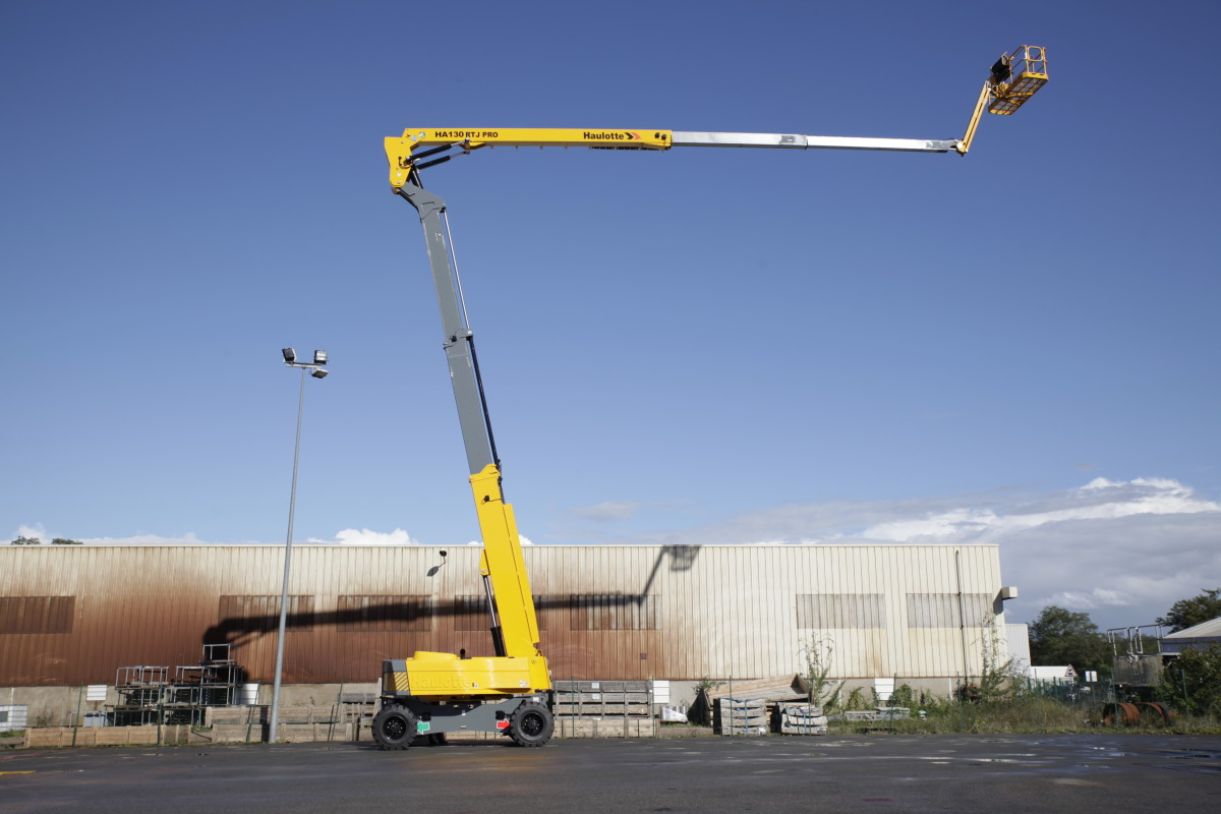

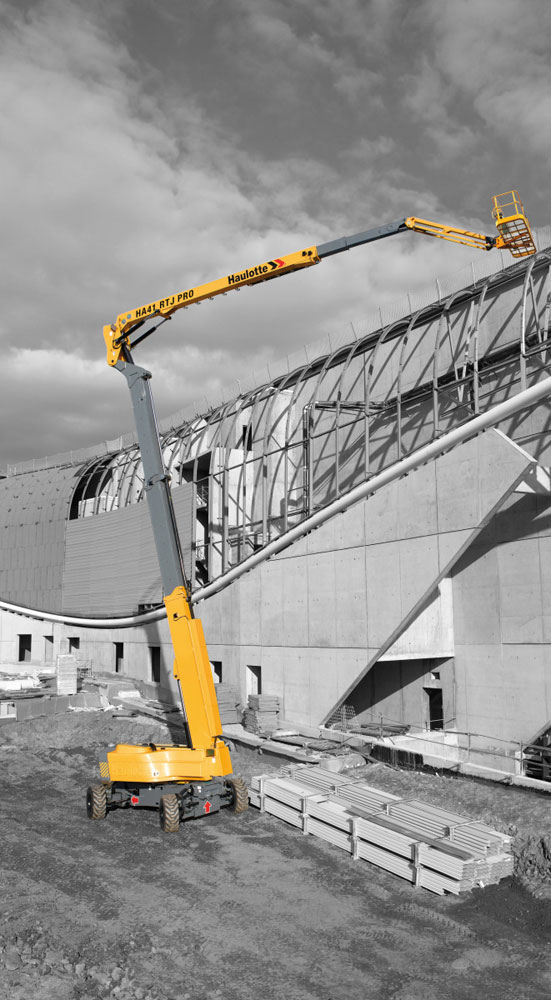

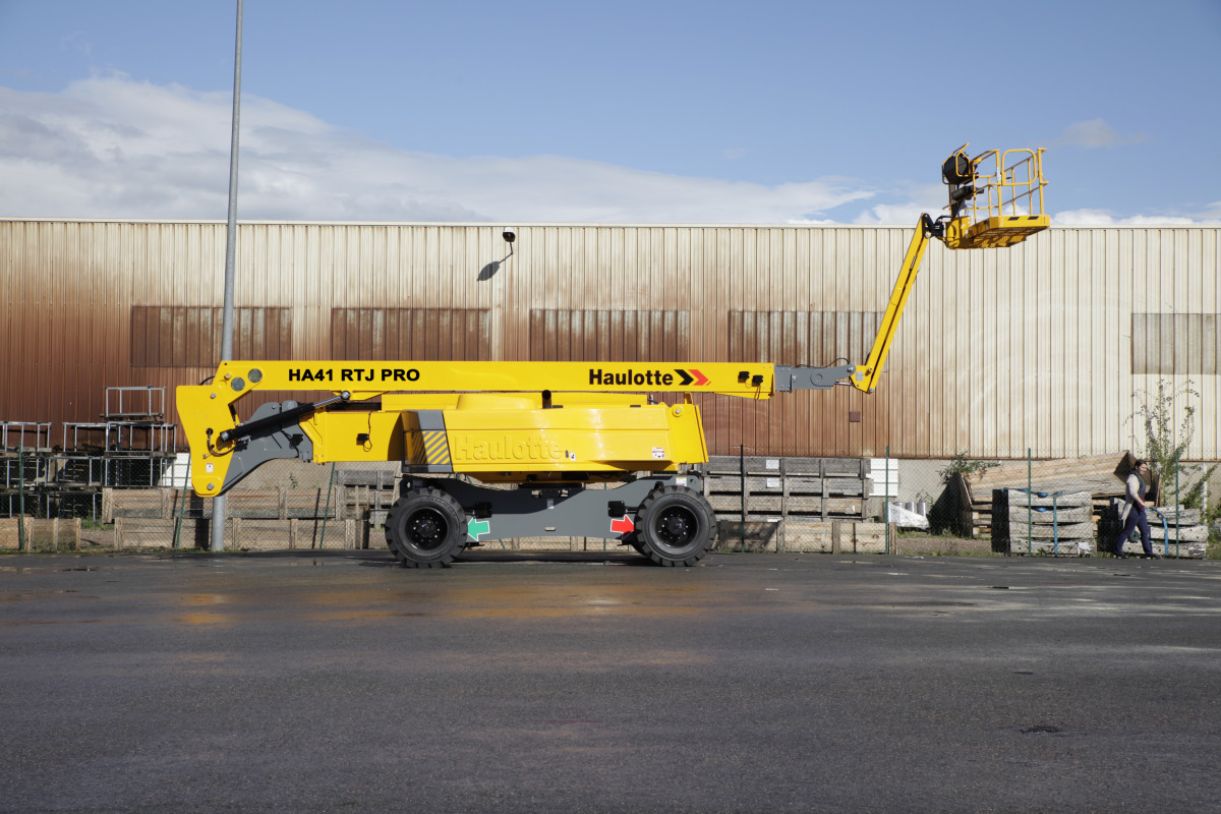

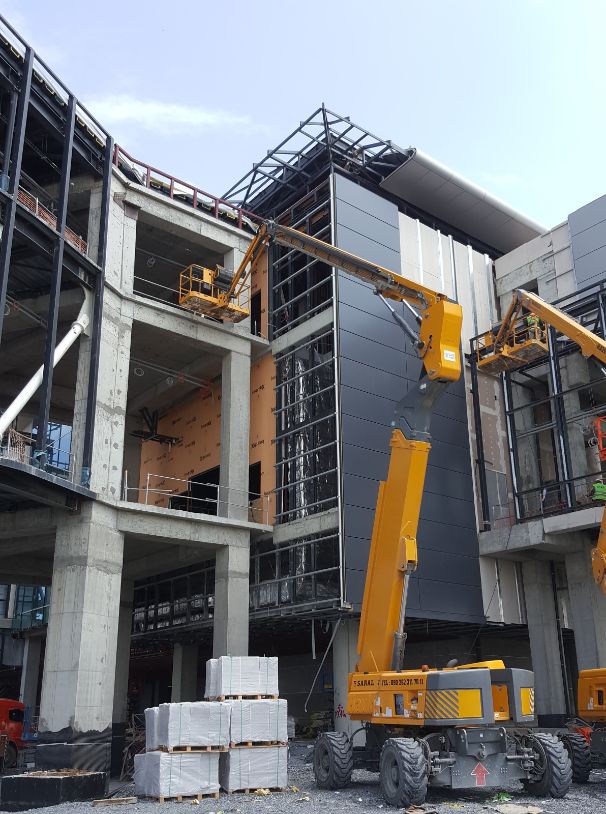

HAULOTTE HA41 RTJ PRO for sale
Main characteristics:
Working height, m:
41.50
Horizontal outreach, m:
20.10
Load capacity, kg:
230
Power supply:
Weight, kg:
23900
Manufacturer:
The best prices
Spare parts in stock
24/7 service
Delivery to any city
Calculate in leasing
Payment in 1 day
Advance payment from 0%
Price increase from 0%
We work with third-party calculations This model is available in:
This model is available in:
Rent
Price:
on request
In stock
With VAT:
The best prices
Spare parts in stock
24/7 service
Delivery to any city
Calculate in leasing
Payment in 1 day
Advance payment from 0%
Price increase from 0%
We work with third-party calculations Specifications
Basic technical data
Working height, m:
41.50
Horizontal outreach, m:
20.10
Platform height, m:
39.5
Maximum inflection height over an obstacle:
17.5
Load capacity, kg:
230
Drive speed, km/h:
0.5 - 5
Tower rotation, °:
360
Wheel base, m:
3.5
Ground clearance, cm:
38
Platform roation, °:
180 (+90/-90)
Weight, kg:
23900
Overall dimensions
Height stowed, m:
2.99
Length, m:
13.1
Width, m:
2.5
Turning radius outside, m:
5.74
Engine
Power supply:
Diesel
Other
Overall outgoing when the tower is turned up to 90 degrees, cm:
3.88
Chassis:
Tires
Country:
France
Manufacturer:
Haulotte Group
additional modernization
- Biodegradable hydraulic oil
- Carrier for pipes
- Hydraulic generator 3.5 kW
- Hydraulic oil cooler
- Hydraulic oil and circulation system for hot countries
- Diesel tank with lockable lid
- Glass holders
- Air valve overspeed automatic shutdown (Electric single-way valve, flame arrester, spark arrestor)
- Intercom (stationary)
- Temperature relay with an hour meter. With the ability to block operation at temperatures outside the permissible range
- Winter package for combustion engine and hydraulic system
- Collision avoidance system
- Insulation of handrails with soft material
- Additional channel for supplying water or air to the working area
- Network extension cable
- Lighting in the work area
- Side hinged door

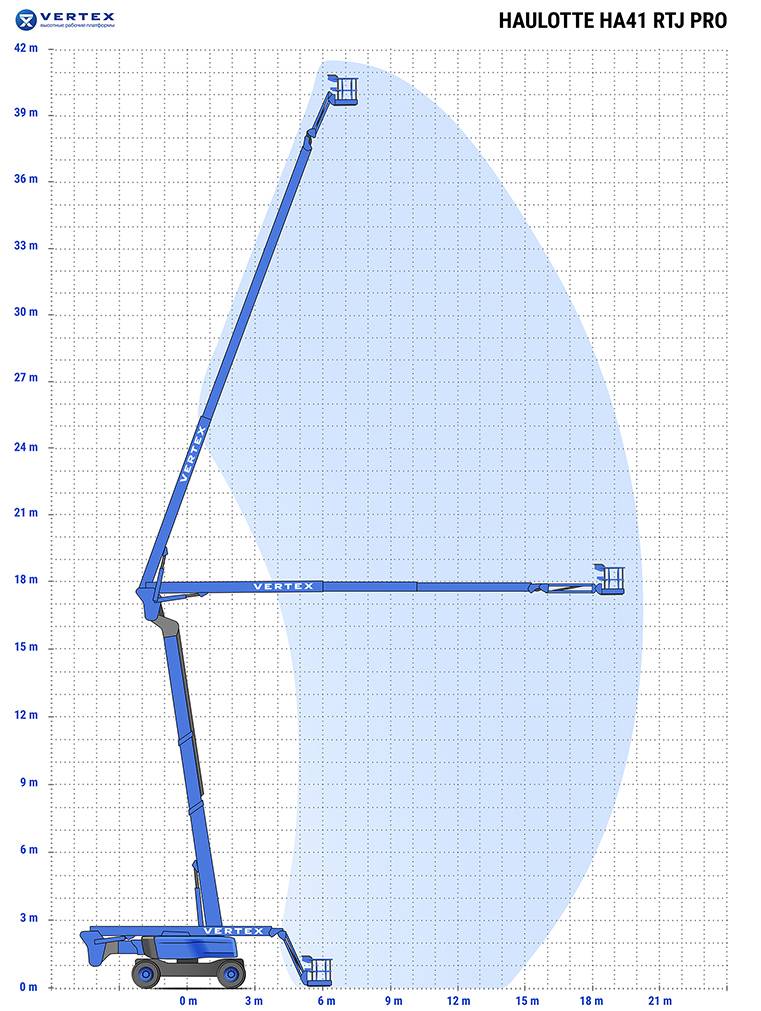

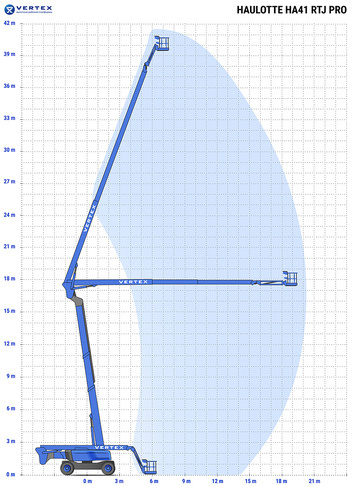

Work area diagrams
